Fumeclear® FC-2002A Laser Fume Extractor for 10W to 20W Laser Engraver

$358.99
$699.99
49% OFF

Save Extra 6% (Final $337.45) for First Purchase

Code: FUMECLEAR

· Powerful Suction Capability: With a suction power of up to 260m³/h, it can absorb substances within 15cm³ of the hood head, fitting 10 - 20W laser engraving, cutting, and desktop soldering.

· 99.97% Purification Rate: It has a 3 - stage filtration system for particles, smoke and dust under 0.3 microns. The filters achieve a 99.97% purification rate.

· Low Noise: it features an aerospace-grade noise reduction design.

· Anti-Clogging System: Anti-clogging function with automatic alarm.

Estimate delivery between

Free Delivery

Free delivery for US

Return Policy

30-Day Easy Returns

Warranty

1-Year Warranty

After-Sale Service

24/7 support

Poster
  • products details

  • specifications

  • reviews

  • product service

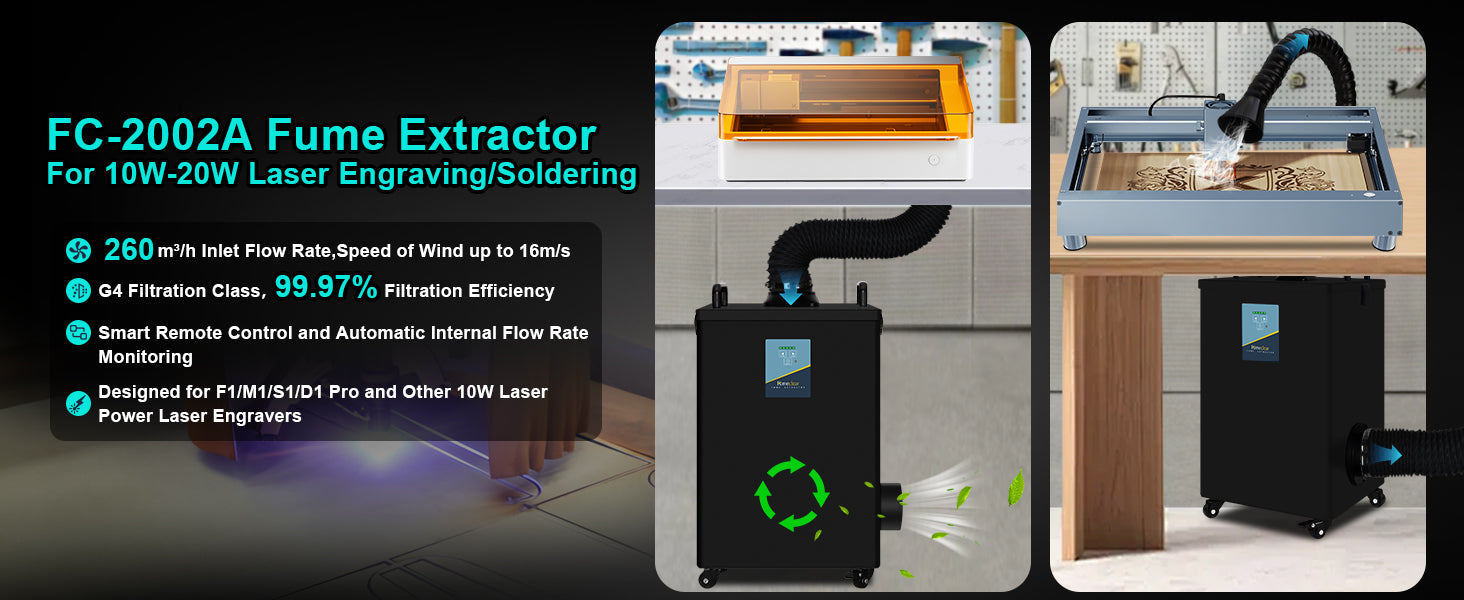

Explore FC-2002A for 10W to 20W Laser Engraver

Strong 3 - Stage Filtration

The FC-2002A fume extractor comes with a powerful three - stage filtration system. The pre - filter quickly traps larger visible particles, while the medium filter of the FC-2002A captures 99.97% of 0.3 - micrometer particles. Additionally, the activated carbon filter absorbs harmful gases and unpleasant smells.

Advantages of FC-2002A Motor

The FC-2002A for 10W to 20W laser engraver is equipped with a high - speed brushless motor. This motor can provide powerful suction for over 20,000 hours without interruption and almost eliminates mechanical wear. Thanks to this design, the device can effectively handle different kinds of debris and dirt. Laboratory tests have verified that its suction power can reach up to 260 m³/h.

Anti-clogging Advantage of FC-2002A

The FC-2002A laser engraver has an intelligent anti - clogging system. It uses advanced sensing technology and algorithms to monitor the air - flow passages in real - time. When detecting impurity accumulation or poor air - flow, the system automatically starts relevant mechanisms. This can avoid suction reduction and reduce failure risks caused by clogging, keeping the FC-2002A stable and efficient during long - term operation.

The Secret of Low Noise in FC-2002A

The FC-2002A features an excellent noise - reduction design. The special noise - reduction coating on the equipment surface acts like a barrier against noise. Meanwhile, high - density sound - absorbing sponges are encapsulated inside, which can effectively absorb the noise generated during operation. The combined effect of these two features ensures that the maximum noise level of the FC-2002A during operation is below 55 decibels.

Why choose FC-2002A Fume Extractor?

What's in the box

1.

Mainframe

7.

Square Hood

10.

Remote Controls

5.

Bamboo Arm

8.

Power Cord

6.

Round Hood

9.

Instruction Manual

1.

Mainframe

5.

Bamboo Arm

7.

Square Hood

9.

Instruction Manual

6.

Round Hood

8.

Power Cord

10.

Remote Controls

Specifications

Title

Model

FC-2002A

Flow

153CFM

Air inlet interface

Φ75mm *1 flange

Noise

<55 dB

Filter Stages

1. Pre-filter

2. Medium HEPA filter

3. Main carbon filter

Dimensions(L*W*H)

11.22*11.22*17.73 inches

Weight

23.6 lbs

Power

160W

Certification

CE & FCC

Customer Reviews

Based on 6 reviews
83%
(5)
17%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Michael

Solved my issues and saved me from selling my engraver. Fumes were so bad that I was going to get rid of it till now. Thank you Fumeclear.
Incredibly fast delivery.
Simple to set up.
A little loud
very effective even at lower modes.

M
Michael J.R.

REALLY SUCKS! NO FUMES!

N
Norman
Good suction and filtering

Works like a charm Should have bought one years ago for soldering.With the long duct I was able to mount the blower under the work bench. The remote is a nice feature. Running it on the lowest 2 settings is plenty of suction to pull the solder smoke away.

H
Hopper
Great little extractor if you are working in an enclosed space

As a hobby welder, machinist and general DIYer with limited time for my passions during the day, finding a versatile air filtration system that allows me to work in my garage at night without disturbing others was paramount. My search led me to the FumeClear FC-2002A, a fume extractor that promised to meet my specific needs. In this review, I'll share my findings based on tests conducted on the noise level, suction power/filtration, and overall ease of use.Noise Level:The FumeClear FC-2002A performed admirably in terms of noise levels. At its lowest speed, the extractor registered approximately 65 decibels, which allowed for normal conversations without the need to raise your voice. At maximum speed, the noise level reached around 85 decibels, while it is acceptable in a workshop environment you wont be able to have a conversation without next to the extractor without speaking louderSuction Power / Filtration:To test the suction power and filtration capabilities of the FumeClear FC-2002A, I pushed it to the limit by using it during welding sessions. While it's important to note that this extractor isn't specifically designed for heavy-duty welding tasks, it proved surprisingly effective in keeping my garage smoke-free during small welding jobs and prototype tack welding. The air quality meter initially showed high readings due to the intense welding, but as I continued using the extractor after welding, the readings significantly decreased. For more intensive welding tasks, a dedicated welding fume extractor will still be necessary, but the FumeClear FC-2002A can be a reliable solution if you are just tacking or prototypingWhen used during machining on a lathe, the FumeClear FC-2002A demonstrated its efficiency in capturing most, if not all, of the cutting oil smoke when positioned within 6 inches of the work. The smaller working envelope of the lathe made it easier for the extractor to capture the fumes and smoke.On a laser engraver within an enclosure the extractor performed great! Medium setting is all thats needed for engraving but I would turn it up to max if you are doing any sort of wood cutting.General Ease of Use:The FumeClear FC-2002A is quite user-friendliness, the locking casters provided smooth movement around the shop while ensuring stability during use. The sturdy gooseneck provides reliable positioning, although a slightly longer gooseneck would be beneficial, particularly when using the extractor at workbench height. The included remote control is convenient, allowing one-handed operation; however, it requires line-of-sight to the front panel as it uses infrared technology. The timing and lock button doesnt seems to do anything tho.Pros:- Impressive suction power at max speed, capable of handling machining and light MIG welding tasks.- Relatively quiet operation at low speed, enabling undisturbed work in a workshop setting.- Sturdy gooseneck ensures precise positioning of the extractor during use.- Lockable casters offer effortless mobility and stability in the workshop.- Extra filters are a bonus.Cons:- The noise level at maximum speed might be bothersome for some users.- The gooseneck could be longer, especially when used at workbench height- Kinda pricey for budget-conscious buyersIn conclusion, the FumeClear FC-2002A is a powerful and efficient fume extractor that suited my needs. While it may not replace a dedicated welding fume extractors for heavy welding tasks, it excels in capturing smoke and particles during lighter welding and machining activities. Its convenience, mobility, and filtration capabilities make it a valuable addition, albeit at a higher price point.

B
Bryce
Great for a hobbiest and professional

I have been using the Fumeclear for about a few months now, and I am very impressed with it. I am a professional hobbiest and I use this fume extractor for a variety of tasks particularly laser cutting.It has a very powerful suction, which is important for removing harmful fumes and smoke quickly and efficiently. It also has a 3-stage filtration system, which removes 99.97% of particles as small as 0.3 microns. This means that I can be confident that I am breathing clean air while I am working. It's also very quiet, which is important to me because I often work in a small workshop. The noise level is under 55dB, which is comparable to a normal conversation. The unit also comes with a variety of mounting options, so I can position it exactly where I need it.

Professional 24/7 Support

5-7 Business Delivery

We usually pack your order within 2 business days. Final delivery takes 5-7 working days.

24/7 Supprt

For questions and problems, you can always
get in touch with our support team.

Emal us:support@fumeclear.com

Let's Hear What Our
Customers Say

You May Also Like

FC-2002/FC-2002A Fume Extractor Filter Sets

$108.99
$159.00

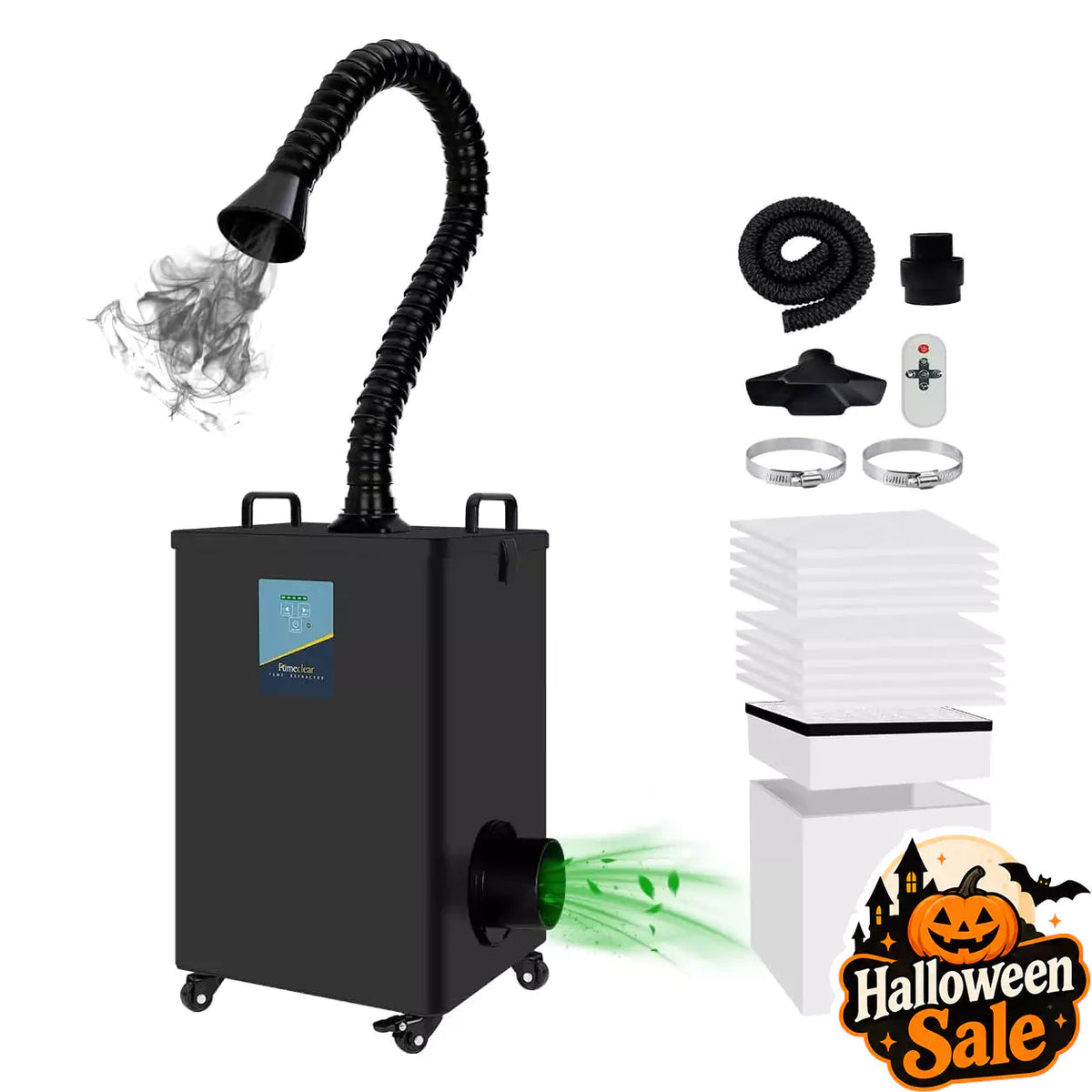

Fumeclear® FC-2002 Smoke Extractor for Soldering & Small Laser

$358.99
$699.00

Fumeclear® FC-1001A Fume Extractor for 3D printing/ Nail Salon

$528.99
$699.00

Fumeclear® FC-2003 Portable Welding Fume Extractor with Dual-Port

$538.99
$759.00

Frequently Asked Questions

Still have questions? Send us your questions by filling out the form below, we will be happy to assist you.

Thanks for contacting us. We'll get back to you as soon as possible.

Email *

Question *

Does FC-2002A work with laser engraving machines such as F1/S1/M1/D1 Pro?

Of course! The FC2002A fume extractor is very suitable for laser engravers with 10-20W laser power. Its 260m³/h air intake ensures complete absorption of the fumes generated during laser engraving.

What type of battery does the remote control use?

Title

Our remote control unified use of CR2025 button cell, the remote control has been equipped with a, can be used directly.

How often are main carbon filters and medium hepa filters generally replaced?

Title

If used normally, our high iodine value coconut shell activated carbon main filter generally needs to be replaced only once in 8 months to 1 year. The glass fiber hepa-filter is generally changed once every 3 months to 6 months.

What if my FC-2002A laser fume extractor breaks down due to an accident?

Title

Don't worry, the Fumeclear team will be at your full disposal until the situation is resolved. Furthermore, all Fumeclear series fume extractors are equipped with a spare fuse inside the machine.

Where to buy replacement filters?

Title

You can find the FC-2002A replacement filter set here.
