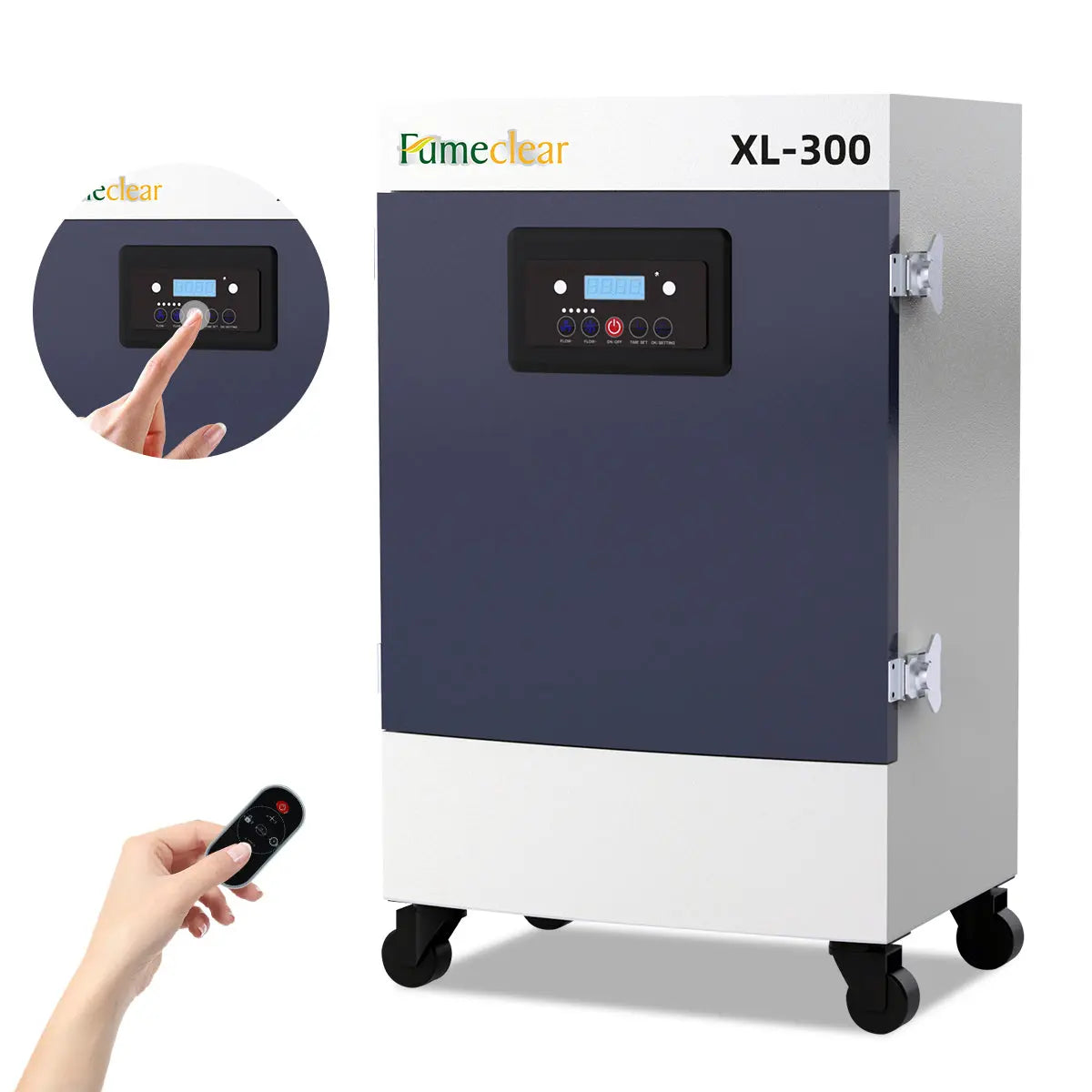

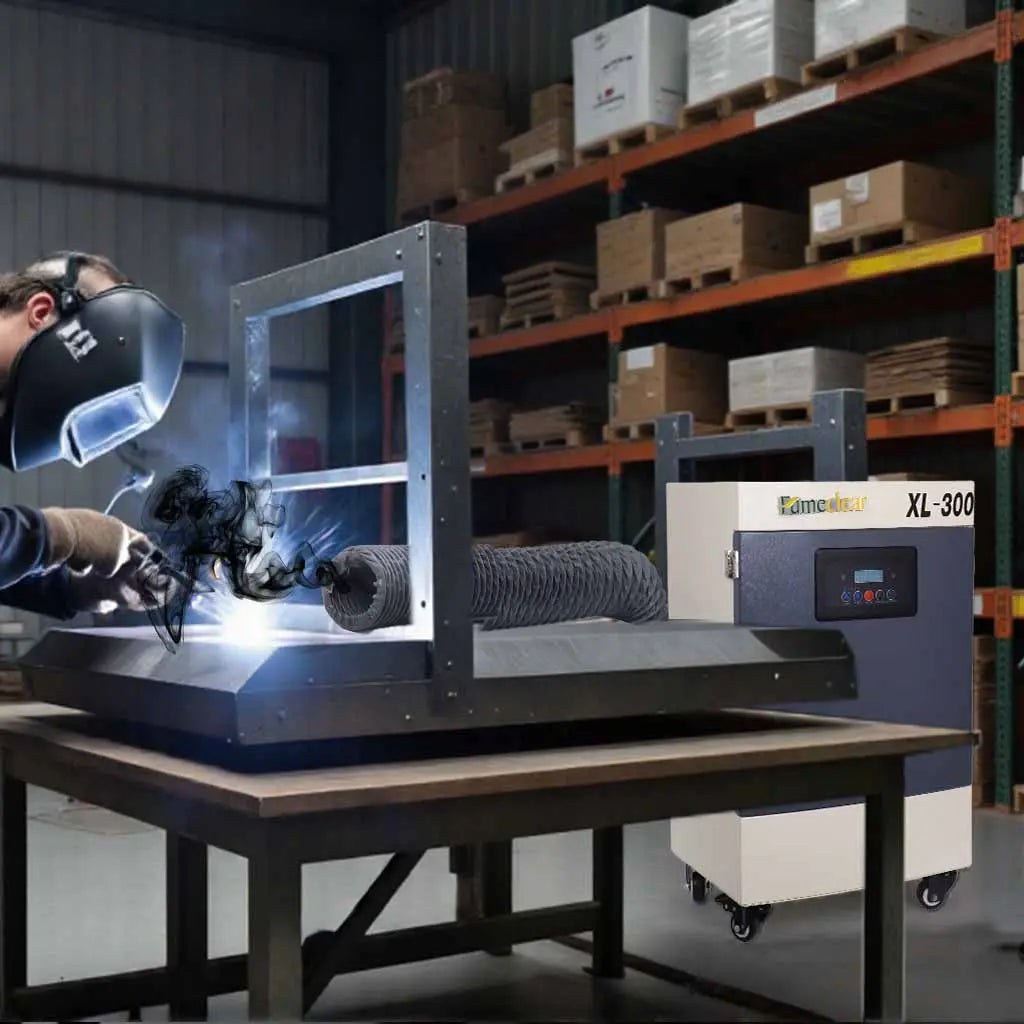

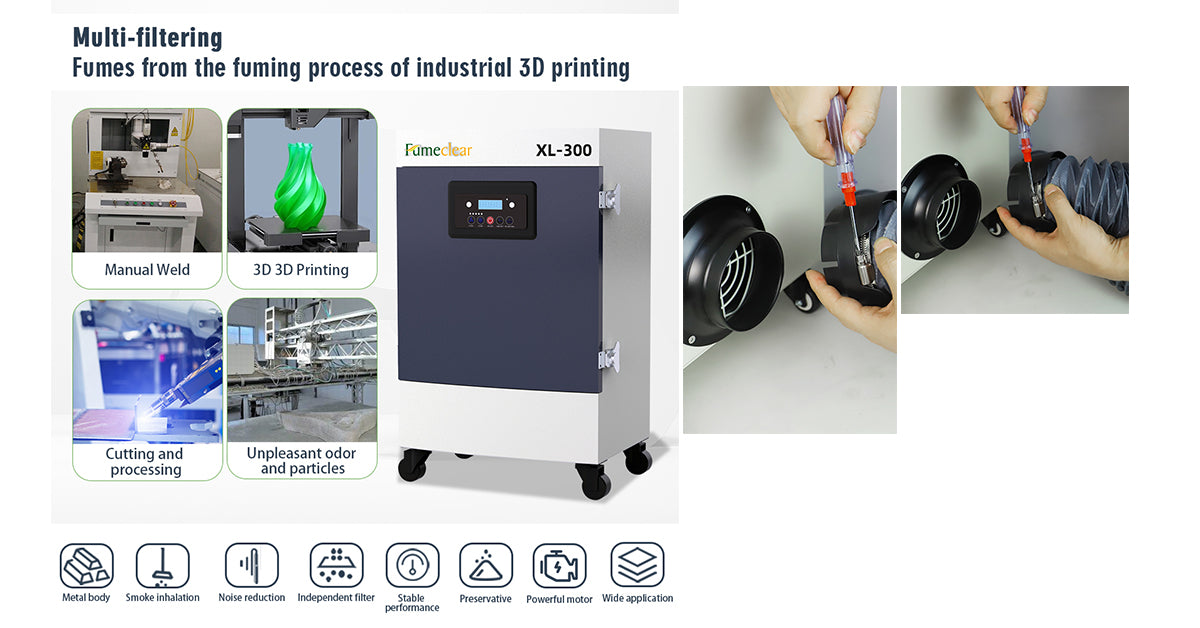

Fumeclear®XL-300 laser Fume Extractor

Fumeclear® XL-300 Fume Extractor Instructions for use

Advantages of Fumeclear®XL-300 laser Fume Extractor

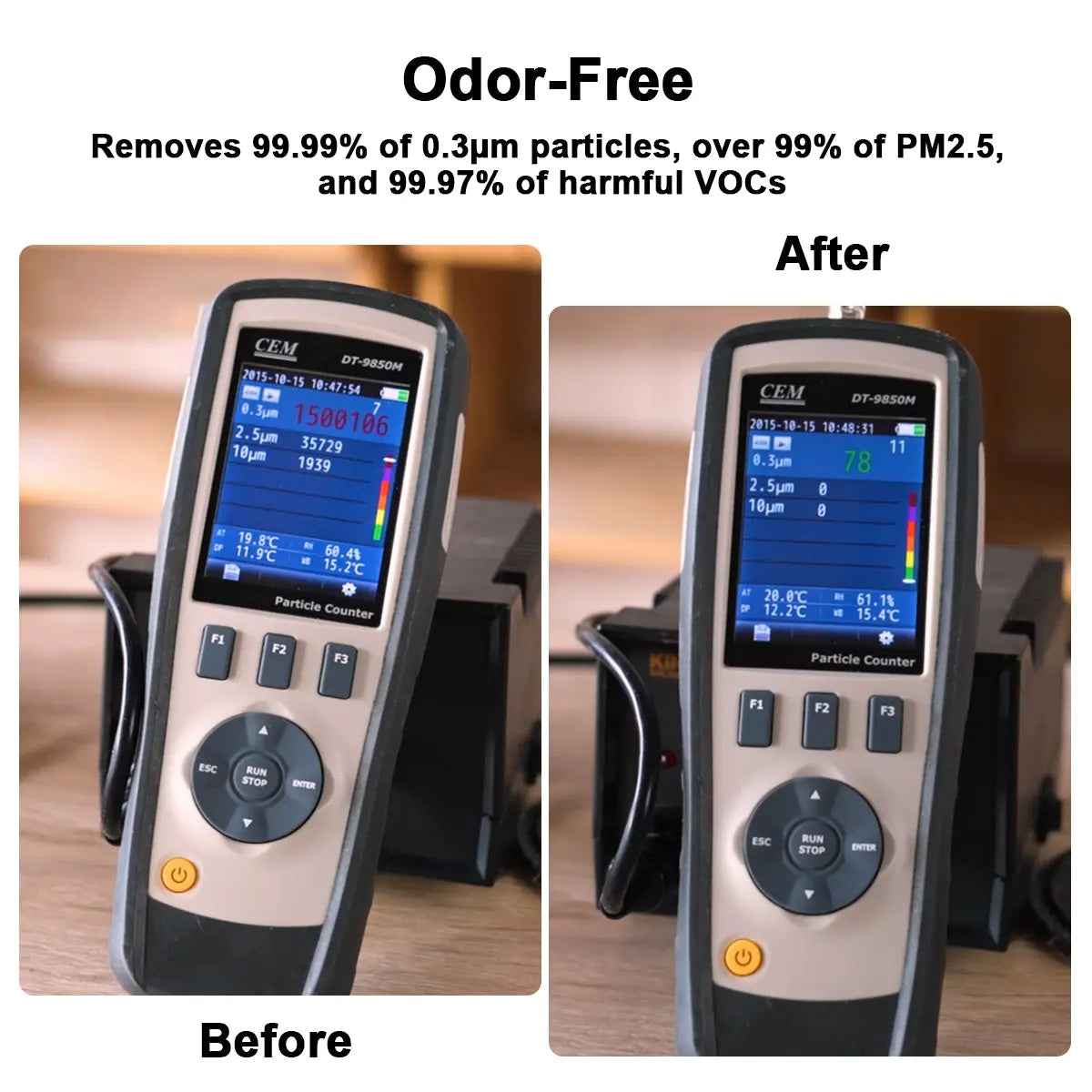

1. High Efficiency Filtration: The XL-300 Laser Fume Extractor features a powerful filtration system that captures up to 99.97% of airborne particles as small as 0.3 microns. This makes it an effective solution for removing harmful fumes, dust, and other contaminants generated during laser cutting, engraving, or marking processes.

2. Customizable Options: The XL-300 Laser Fume Extractor is available in various configurations, allowing customers to customize their units based on their specific needs. It can be fitted with a range of filters, including HEPA, activated carbon, and specialty blends to accommodate different types of applications.

3. Quiet and Compact Design: The XL-300 Laser Fume Extractor has a compact and quiet design, making it an ideal solution for small businesses and hobbyists who want to keep their workspace clean without sacrificing space or peace of mind.

4. User-Friendly Operation: The XL-300 Laser Fume Extractor is easy to operate, with intuitive controls and a user-friendly interface. It also comes with a range of safety features, including a filter change indicator and automatic shut-off function, to ensure safe and reliable operation.

5. Cost-Effective Solution: The XL-300 Laser Fume Extractor offers a cost-effective solution for those who want to protect their health and the environment without breaking the bank. It is a reliable and durable unit that requires minimal maintenance and can help to reduce operating costs over time.

Fumeclear®XL-300 laser Fume Extractor Product Size：

Fumeclear®XL-300 laser Fume Extractor Specification：

Fumeclear®XL-300 laser Fume Extractor List of installed：

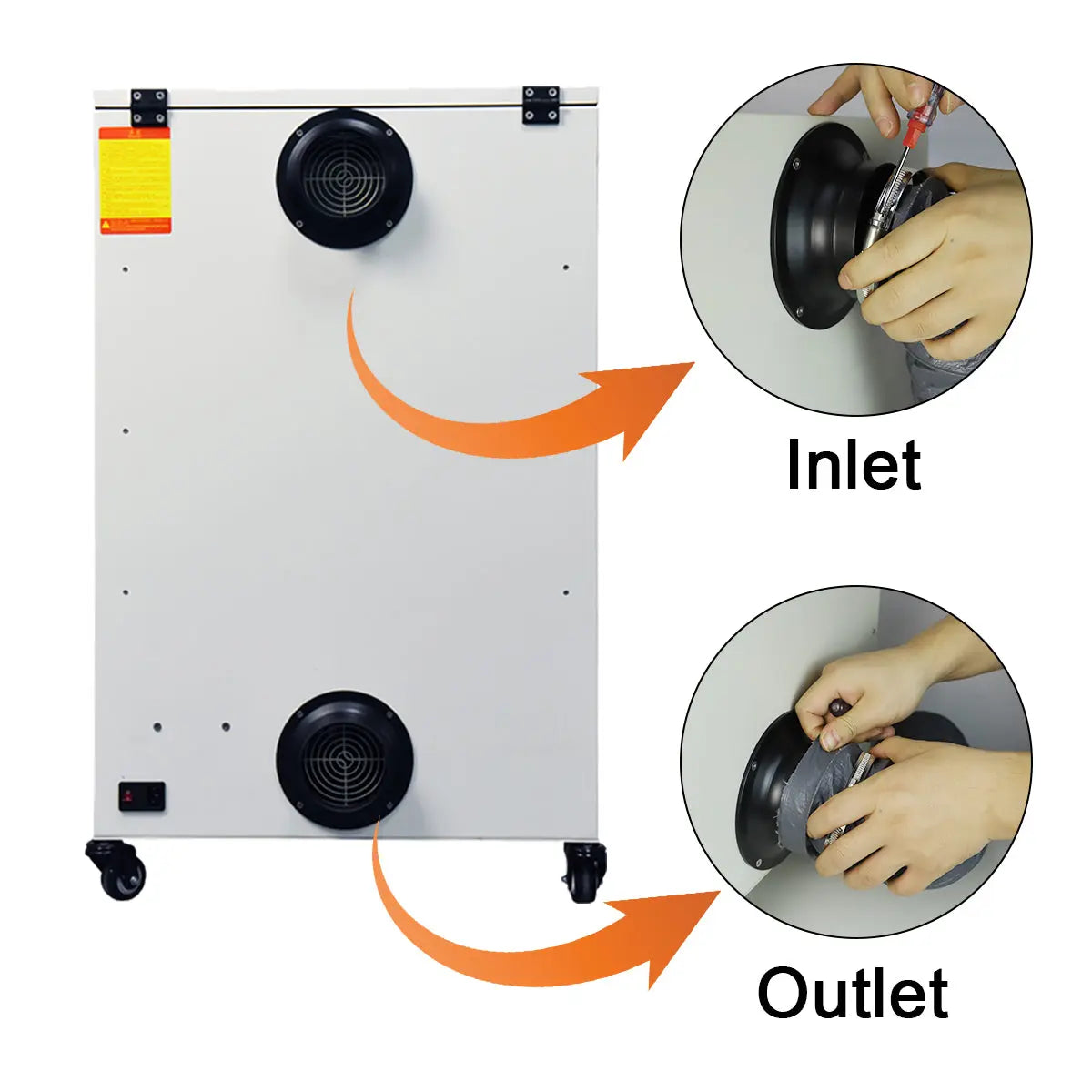

Fumeclear®XL-300 laser Fume Extractor Installation instruction：

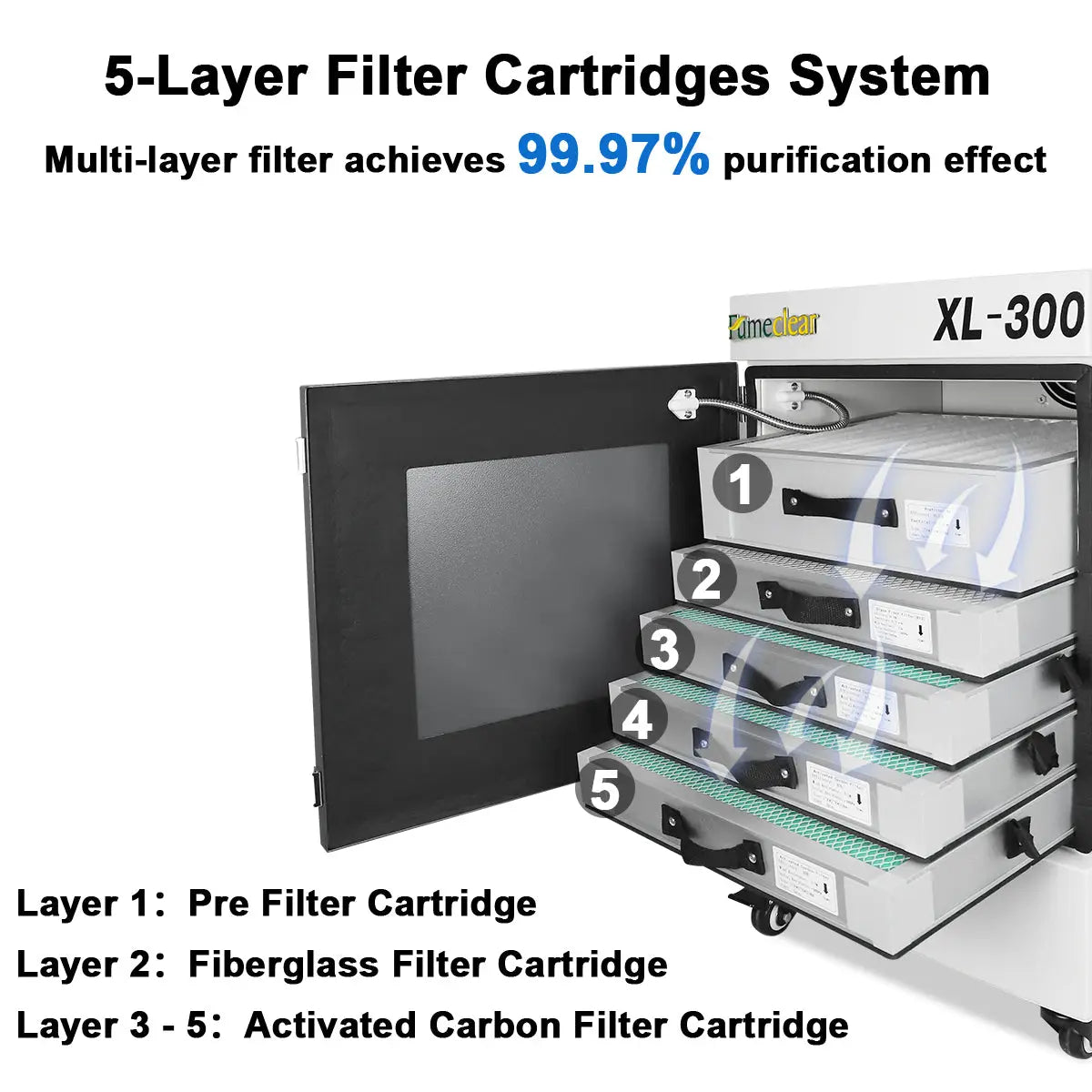

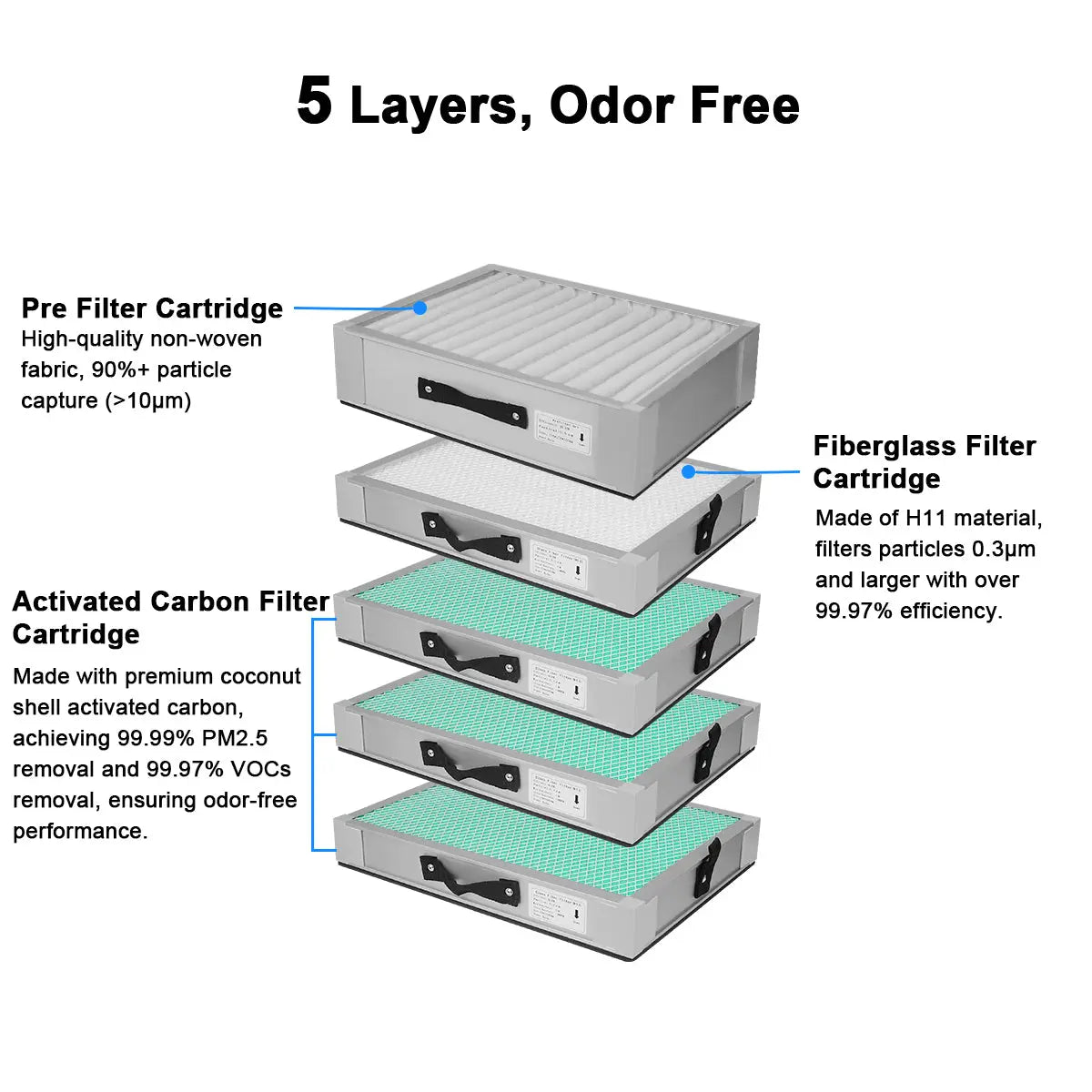

Fumeclear®XL-300 laser Fume Extractor filtration system consists of:

Our products package with 5 filter

• First effect cotton filter core 【378x278x100mm】
• Glass fiber core 【378x278x50mm】
• Activated carbon filter core 【378x278x50mm】

Fumeclear®XL-300 laser Fume Extractor Filter Use & Maintenance ：

Note: it is forbidden to install filter cartridge or use inferior filter element in the market.In this case,the equipment is not within the scope of warranty.Please regularly replace the original configuration filter element and fill it in order to avoid causing greater losses.

Filter core placement in accordance with standard configuration

• Turn the two butterfly buttons on the right side of the box counterclockwise,and open the front door of the chassis

• Start with the top layer. Pull the belt and draw out the filter element one by one.

• After replacing a certain level of filter element, we will put it down from top to bottom according to the order.

Note: This product uses replaceable filter consumables. When the filter core is saturated.it needs to be replaced in time to ensure the purification effect of the machine.

Fumeclear®XL-300 laser Fume Extractor 0peration instruction:

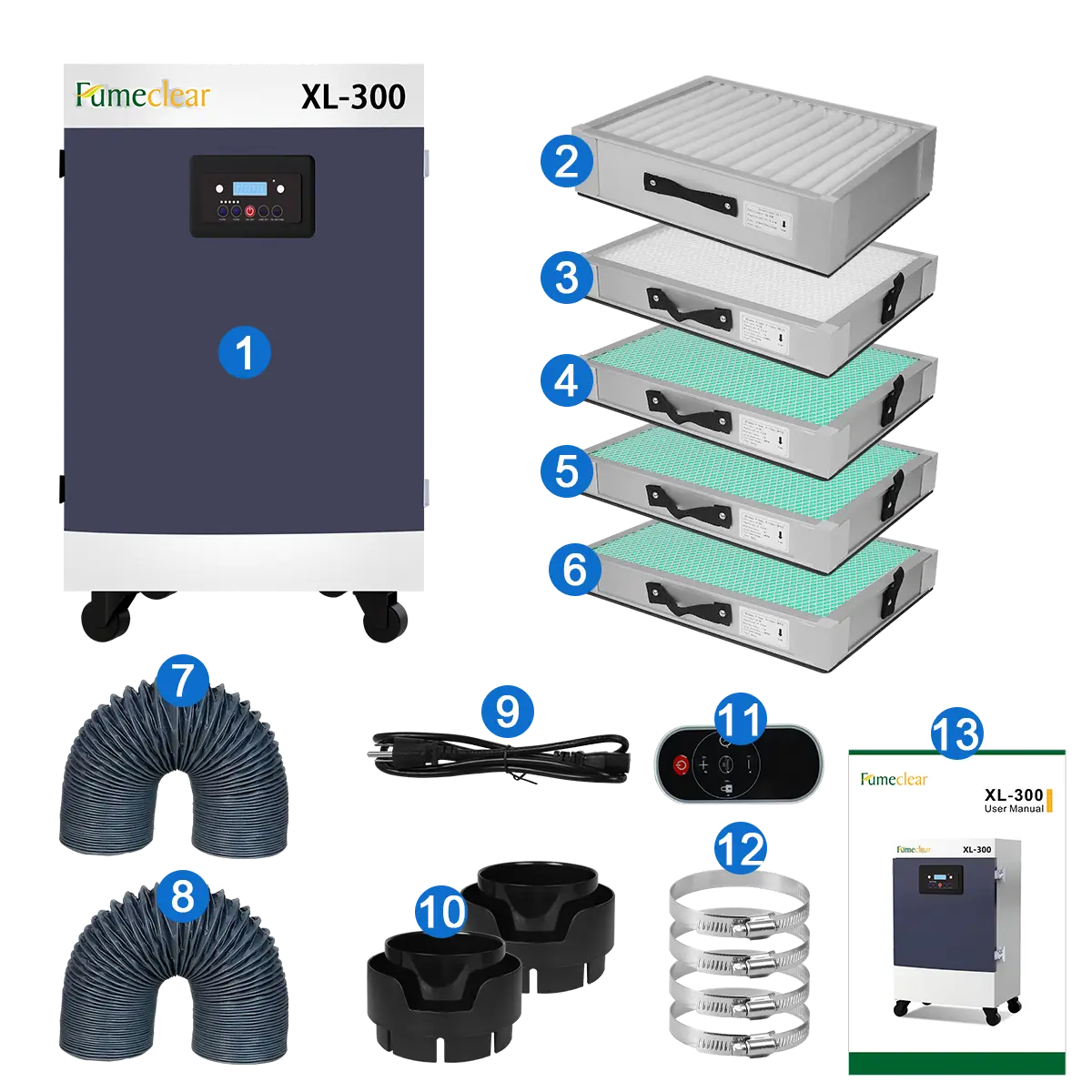

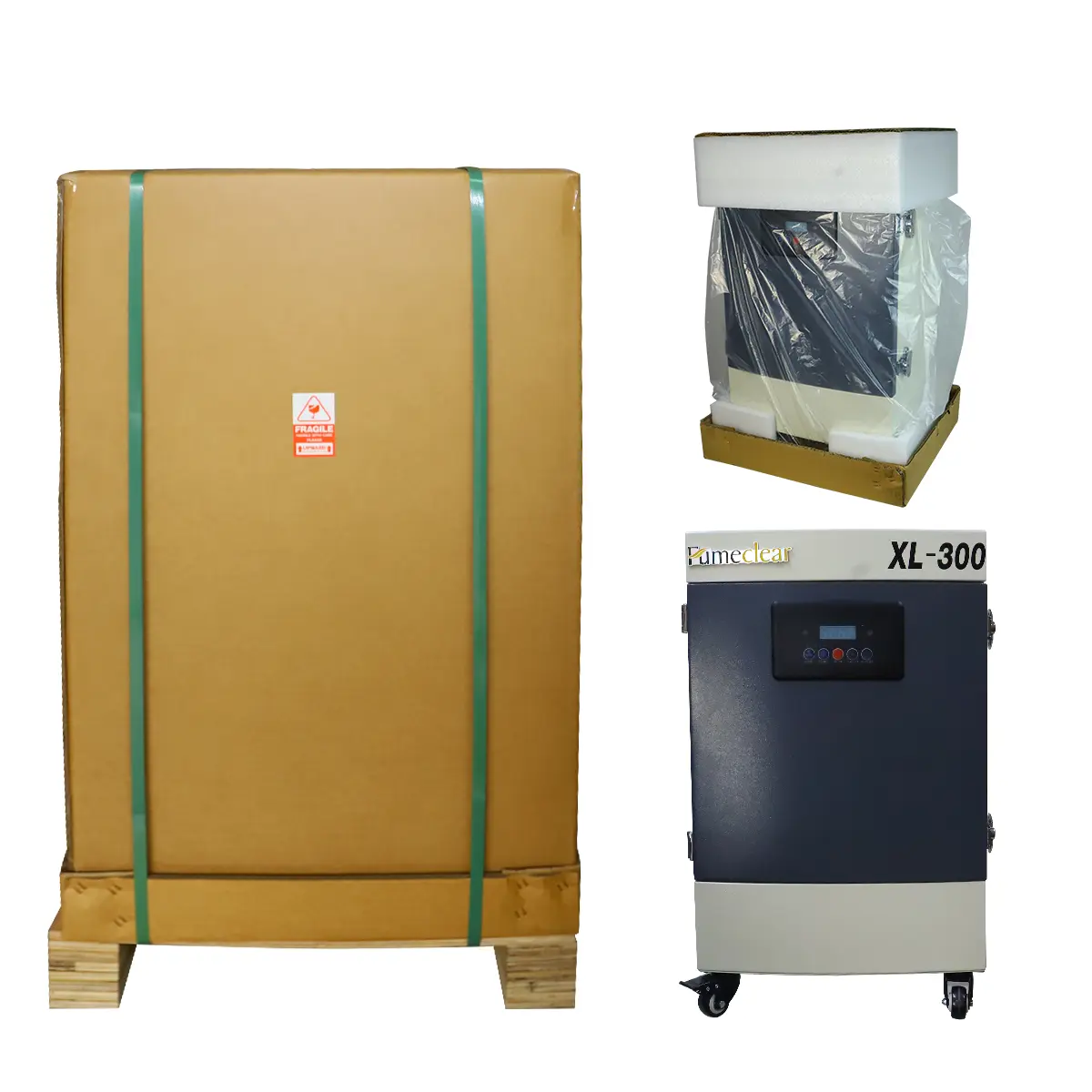

Fumeclear®XL-300 laser Fume Extractor Packing

• XL - 300 Fume Extractor * 1

• 100MM *3M Air Intake Pipe

• 100MM *5M Exhaust Pipe

• PP Medium Filter * 1

• Primarry Filter * 1

• Activated Carbon Filter * 3

• Product Manual * 1
